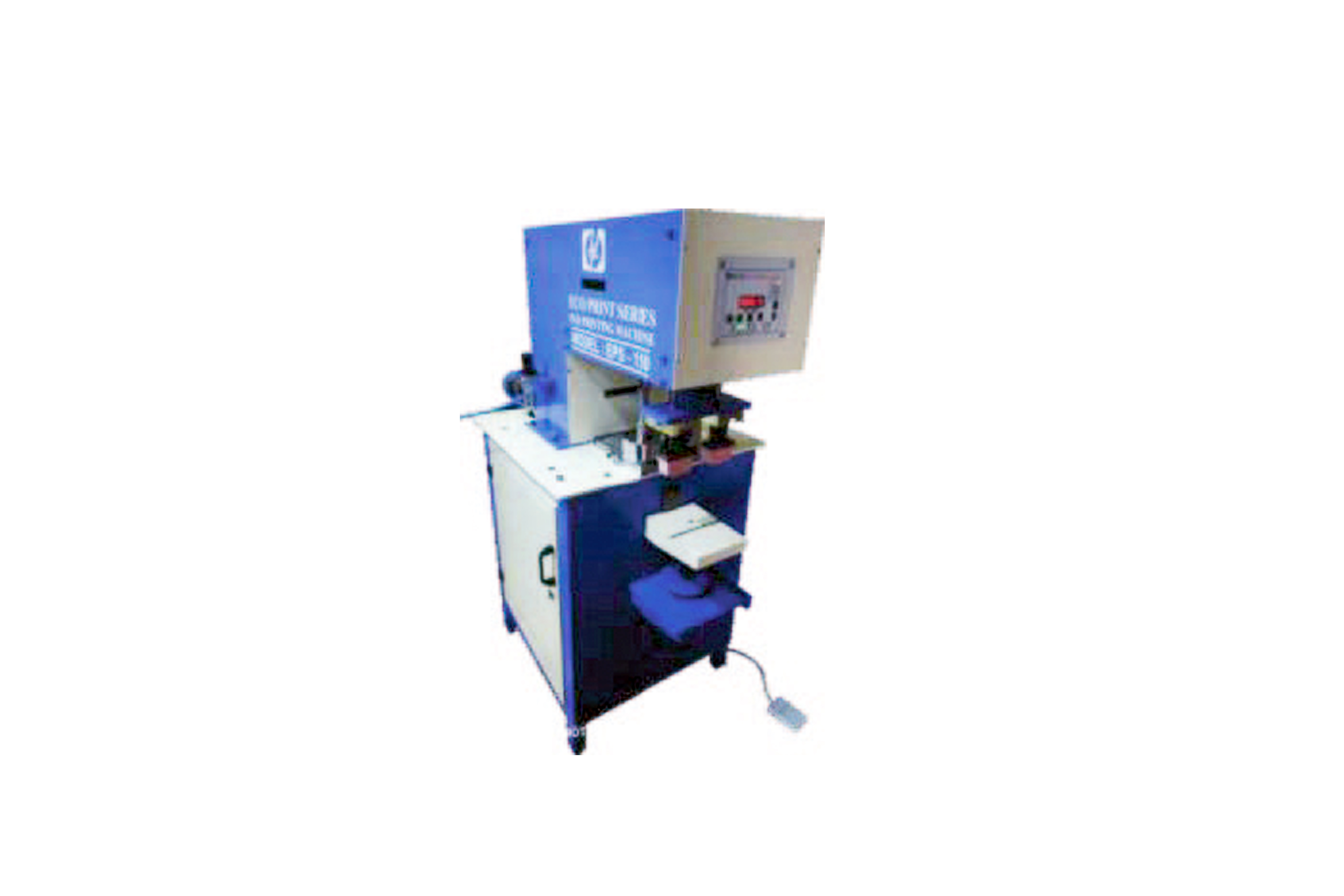

EPS-150F
Technical Information
| Plate Size | 210 x 100 x 10mm Max |
|---|---|
| Printing Area | 85mm |
| Printing Speed | 1200 Prints / Hour Max |
| Height of Product | 300 mm Dia |
| Dive | Pneumatic |
| Compressed Air Connection | 6 - 8 bar working pressure |
| Electronic Control System | With 10 inputs & 6 outputs for peripheral units |
| Pad Vertical Stroke | Maximum 100mm infinitely adjustable |
| Speed Adjustment | Infinitely adjustable Via Pneumatic Choke |
| Dimensions | Length - 900 mm x Width - 800 mm x Height - 1500 mm |
| Weight | 240 Kgs |
